Front axle, 7000 lbs. (3175 kg) capacity - I-beam Wide-trac. Up to 53 degree turn angle, (Includes 4-piston brake apply calipers) (Requires GZG or GZJ GVWRs)
Front shock absorber, diameter 1.375" (35mm)
Front stabilizer bar, 2" x 2" square tube (5 cm x 5 cm)
Front suspension, tapered leaf, 7000 lbs. (3175 kg) capacity (includes stabilizer) (Requires GZG or GZJ GVWRs)
Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
Front tire size, 225/70R19.5F - 7280 lbs. (3802 kg) capacity, (With R4A Goodyear or R4L Michelin, requires R3C front premium highway tread; with R4N Bridgestone requires R3M front all season tread)
Front tread, premium, highway (Requires R4A Goodyear or R4L Michelin)
Front wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole. 10,000 lbs. (4536 kg) capacity, (Requires Q83 steel rear wheel)
Fuel sender assembly. Robust fuel pump
Fuel tank, single, 25-gallon (95L) fuel capacity - gas or diesel located midship between the frame rails, with fuel fill neck located over top of frame rail (this option uses the mid-frame tank included in the NG6 dual tank option), (Required in YW2 Wrecker Package) (Standard on 60" (152.4 cm) CA), (Optional on all other CA's) MINIMUM OVERHANG = 36
GVWR, 19,500 lbs. (8845 kg) capacity - GCWR limited to 26,000 lb. (11,794 kg)
Option PTO not required - This option should only be ordered when a customer specifically does not require an electric hand throttle for use with power-take-off provisions. (Note: may delete transmission PTO gear.)
Parking brake, hand lever operated transmission mounted drum brake
Rear axle ratio, 4.78:1, (Available with all rear axles) (G80 rear limited slip differential is not available with this option when in combination of LRY Duramax diesel engine, NB5 single exhaust, and H08 rear axle)
Rear axle, single speed, 13,500 lbs. (6123 kg) capacity - full floating, includes 2-piston brake applied calipers (Requires GZG or GZJ GVWs)
Rear shock absorber, 1.375" (35mm)
Rear suspension, multi-leaf, 15,000 lbs. (6804 kg) capacity (Requires GZG or GZJ GVW with a GL8 rear axle or with H08 rear axle GW2 GVWR package is required)
Rear tire size, 225/70R19.5F - 13,660 lbs. (6196 kg) capacity, (With S4A Goodyear, requires S3C rear premium highway tread or S3H rear traction tread; with S4L Michelin, requires S3C rear premium highway tread or S3J rear highway traction tread; with S4N Bridgestone requires S3M rear all season tread)
Rear tread, premium, highway (Requires S4A Goodyear or S4L Michelin)
Rear wheel drive
Rear wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole, 20,000 lbs. (9072 kg) capacity, (Requires Q82 steel front wheel)
Road Speed Governor, controlled by the speed rating of the tires ordered. - which will be less than or equal to 85 mph (137 kph); 80 mph (129 kph) with EC9 128" wheelbase/60" CA, ML6 manual transmission and 008 4.88 rear axle ratio; 75 mph (120 kph) with EC9 128" wheelbase/60" CA, M74 automatic transmission and GL8 13,500 lb 75 mph (120 kph) with 2
Tethered fuel cap
Transmission, Allison 1000 Series automatic - with 0.71 overdrive. Torque Rating: 520 lb-ft (705 N-m). Column shift. Base model does not include power take-off gear, to include PTO gear please order with RPO "PTO". Includes transmission-oil cooler located inside radiator and an air-to-oil auxiliary cooler. PTO mounting location on the driver's side
Wheelbase, 128" (325.1 cm) - with 60" (152.4 cm) CA and 100" (254 cm) CE. Includes a 6mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63 (Requires KYW 75 mph (120 kph) road speed governor with RPO options M74 automatic transmission) (GVW's 18,000 - 19,500 lbs.)
Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
Daytime running lights
Exterior roof drip moldings

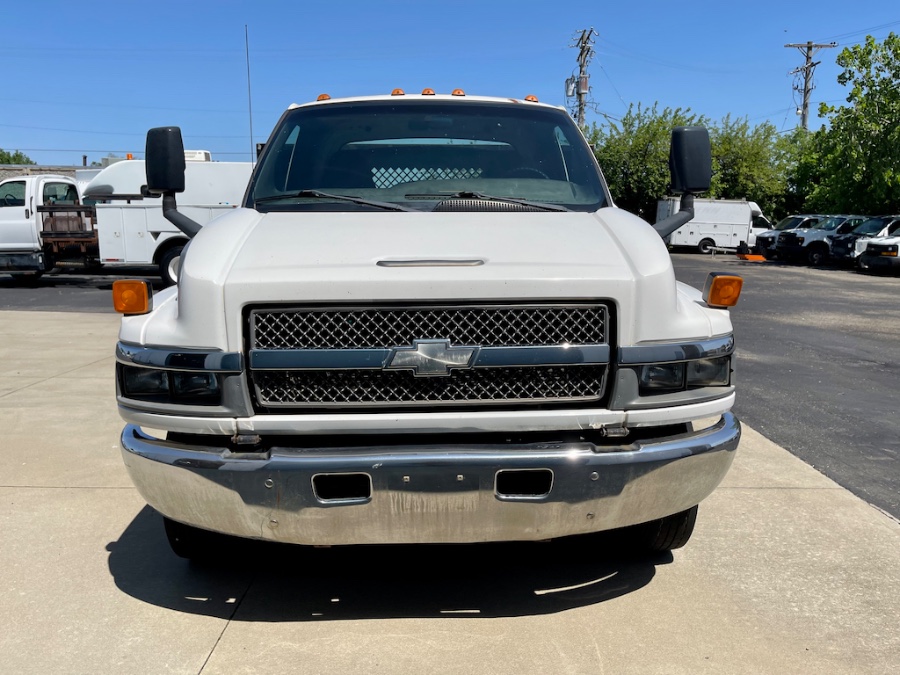

Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
Mirror, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
Paint scheme, solid, lower color
Paint scheme, solid, upper color
Provisions for mounting front license plate

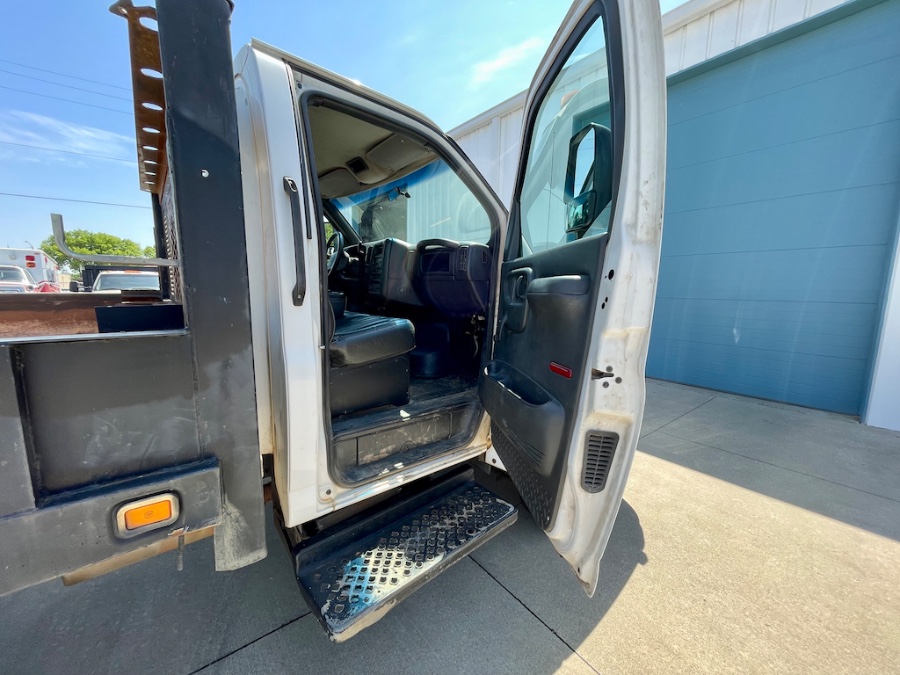

Steps under cab doors
Windows, Solar-Ray tinted - all windows
Windshield wipers, intermittent, with pulse washers
Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
Cloth headliner
Coat hooks (2) located on cab back panel
Electronic engine hour meter
Engine "Check Gauges" telltale light and buzzer, oil pressure gauge
Gauges, low oil pressure and coolant level, high coolant and engine oil temperature
Headlamp warning buzzer
Interior trim, Very Dark Pewter (Requires 69U Very Dark Pewter Vinyl or 69C Very Dark Pewter Cloth)
Molded vinyl floor covering
Powerpoints - one in-cab power source (in addition to optional cigarette lighter) for electrical plug-in accessories
Radio, Delco AM-FM stereo radio - with coaxial speakers in all door panels
Seat belt warning indicator
Seat trim, vinyl, Very Dark Pewter
Seat, driver, high-back bucket, fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
Steering wheel, simulated leather
Steering, power - ZF variable ratio power
Sunshades, passenger side and driver side, vinyl-covered

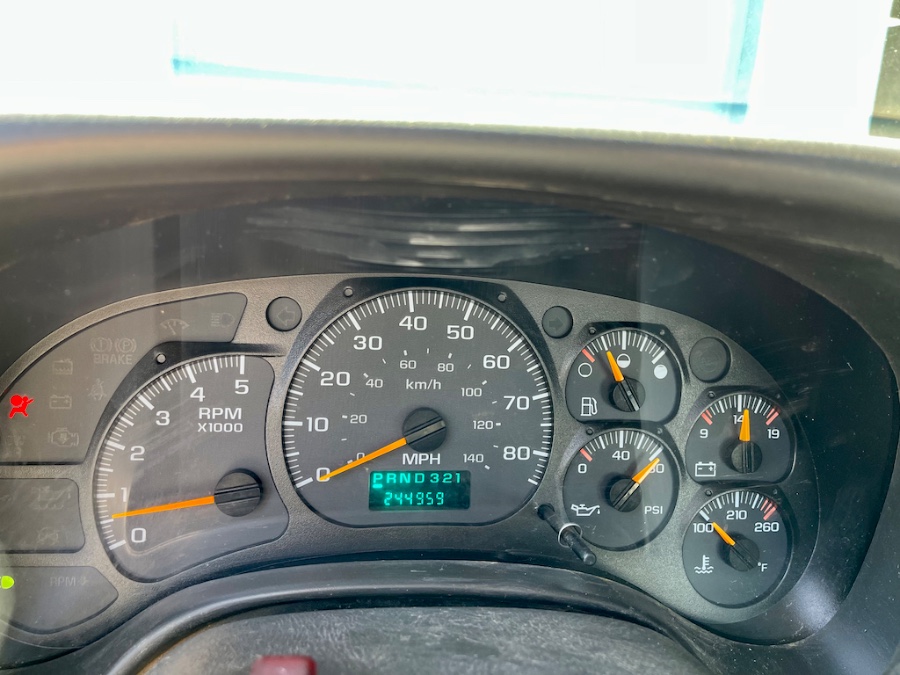

Tachometer with automatic and manual transmissions
Trim console - located next to driver's seat, and two cupholder
Two sided single common key for doors and ignition
Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits
Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
